Solo Multicopter
Autonomous Mini UAV
Solo Multicopter Mini UAV

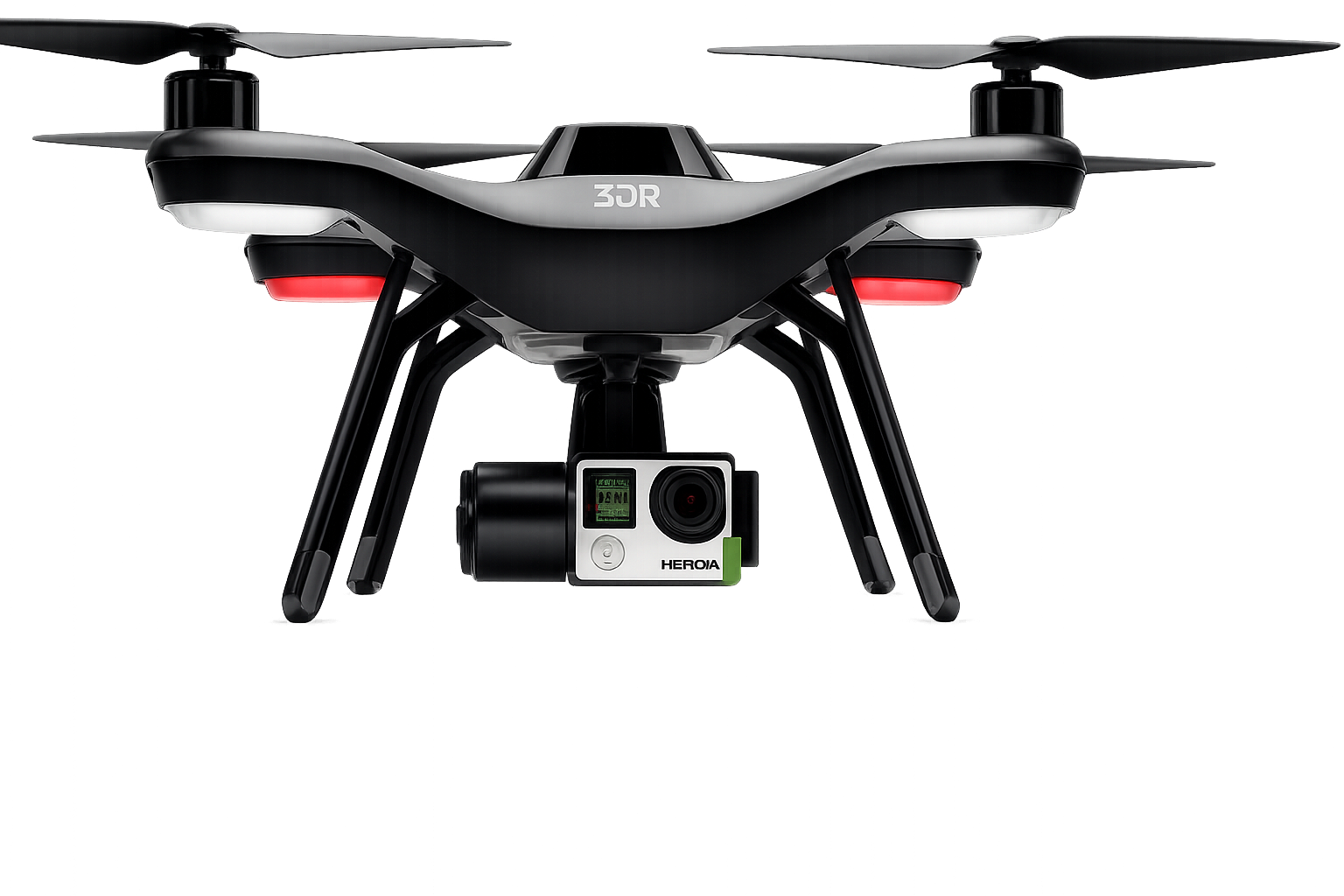

Solo is a FULLY AUTONOMOUS Mini Unmanned Multicopter aircraft. It is capable of carrying a 400 Gram payload. The payload is a Day or Night Camera mounted on a gyro stabilized camera mount. The UAV is electrically powered with a very low dB level and made of ABS Plastic.
25 min
Endurance2.0 km
Range460 mm
Size420 g
PayloadTechnical Specifications
Physical Specifications
| Motor to Motor | 460 mm |
| Height | 250 mm |
| Flying Weight | 1800 g |
| Payload Capacity | 420 g |
| Propulsion | 150W BLDC Motors × 4 @ 14.8V |
| Propeller | 10×4.5 Nylon × 4 |
| Battery | 14.8V 5200mAh Li-Po |
Flying Characteristics
| Range | 2.0 km |
| Endurance | 25 minutes |
| Cruise Speed | 20 km/h |
| Max Speed | 30 km/h |
| Max Wind | 20 km/h |
| Accuracy | Within 3 meters |
Capabilities
- Fully Autonomous from Takeoff to Landing
- Up to 300 Programmable Waypoints
- Loiter Mode at any waypoint
- Manual Override at any stage
- Click-to-Guide functionality
- Payload activation/deactivation from GCS
- Auto payload trigger at waypoint
- Fail-safe Return to Home (RTH) & Auto Land
Autopilot System
- ARM Cortex M4 32-bit Processor @ 168 MHz with NuttX RTOS
- ST Micro L3GD20 3-Axis Gyro
- MPU6000 3-Axis Gyro + Accelerometer
- uBlox Multi-GNSS GPS
- Secondary GPS (optional)
- HMC5883L 3-Axis Dual Magnetometer
- MS5611 High Resolution Barometer
- Onboard Micro SD Card for Flight Data Logging
Communication & Video Link
Radio Control Link
| Encoding | Wi-Fi |
| Modulation | FHSS |
| Frequency | 2.4 GHz |
| RF Power | 100 mW |
| Range | 2.5 km (airborne) |
Video Link
| Type | Wi-Fi Digital Video |
| Resolution | 1080x720 |
| Recording | Onboard 32GB SD Card (*.mov) |
Standard Package Contents
- Solo Multicopter Aircraft
- Android Tablet GCS
- Clover Leaf Video Antenna
- Omni Antenna for Data Link
- Microprocessor Battery Charger
- Radio Control Transmitter
- Mini Tool Kit
- ABS Backpack Carry Case
Frequently Asked Questions
Click any question to expand the answer
It offers up to 25 minutes of flight time.
Solo Multicopter can carry up to 420 grams payload.
Yes, designed and manufactured in India by OM UAV Systems.
Note: Specifications subject to change without notice. All values are under ideal test conditions. Optional items affect pricing.
