Surveyor-I
Mini Survey UAV

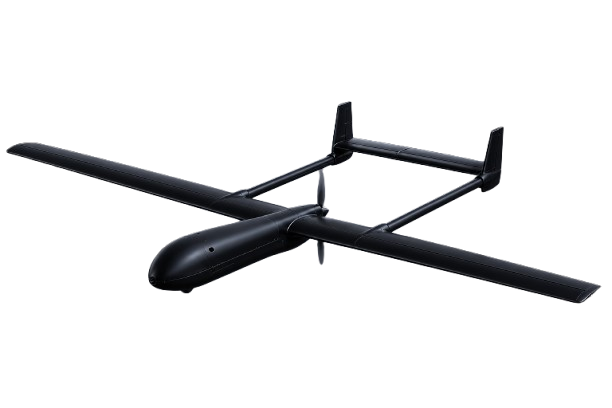

Surveyor-I Mini UAV
Surveyor-I is a fully autonomous mini fixed wing UAV designed for surveying and mapping applications. It can carry a 400g payload (Canon Powershot camera) and offers excellent endurance with low noise operation. The airframe is made of Elasto-Polymer foam and Carbon Fiber Composites.
100 min
Endurance10 km
Range1800 mm
Wing Span400 g
PayloadTechnical Specifications
Physical Specifications
| Wing Span | 1800 mm |
| Length | 1200 mm |
| Height | 150 mm |
| Flying Weight | 2500 g |
| Payload Capacity | 400 g |
| Propulsion | 350W BLDC Motors @ 11.1V |
| Propeller | 11x5 Fiber Reinforced Nylon |
| Battery | 11.1V 13000mAh Li-Ion |
Flying Characteristics
| Range | 10 km |
| Endurance | 100 minutes + 20 mins reserve |
| Cruise Speed | 48 km/h |
| Max Speed | 60 km/h |
| Stall Speed | 35 km/h |
| Max Altitude | 3000 m |
Capabilities
- Fully Autonomous from Takeoff to Landing
- Up to 300 Programmable Waypoints
- Loiter Mode at any waypoint
- Manual Override at any stage
- Click-to-Guide functionality
- Auto Payload Activation
- Fail-safe Return to Home (RTH)
- GCS Switchable Navigation Lights
Autopilot System
- ARM Cortex M4 32-bit Processor @ 168 MHz, 252 MIPS with NuttX RTOS
- MPU-6000 3-Axis Gyro + Accelerometer
- uBlox High Accuracy GPS (Multi-GNSS)
- Secondary GPS for backup (Optional)
- HMC5883L 3-Axis Dual Magnetometer
- MS5611 High Resolution Barometer
- Onboard Micro SD Card for Flight Data Logging
Communication Links
Data Link
| Output Power | 500 mW |
| Modulation | FHSS |
| Frequency | 900 MHz |
| Range | 10 km (with Yagi) |
Radio Control Link
| Encoding | PPM |
| Modulation | FHSS |
| Frequency | 400-455 MHz |
| RF Power | 500 mW |
| Range | 5 km (airborne) |
Survey Camera
The aircraft is fitted with a CANON Powershot camera which takes still pictures at the grid waypoints automatically.
The pictures are then geo-tagged using the flight telemetry log and processed on stitching software like Pix4D to form
a 3D map for engineering purposes.
Standard Package Contents
- Surveyor-I Aircraft 1 Nos.
- GCS with Windows Laptop
- Yagi Antenna for Data Link
- Microprocessor Battery Charger
- Radio Control Transmitter
- Mini Tool Kit
- Semi Ruggedized Carry Box
Frequently Asked Questions
Click any question to expand the answer
It offers up to 100 minutes endurance with 20 minutes reserve.
Operational range is 10 km.
Yes, designed and manufactured in India by OM UAV Systems.
Note: Specifications subject to change without notice. All values are under ideal test conditions. Optional items affect pricing.
